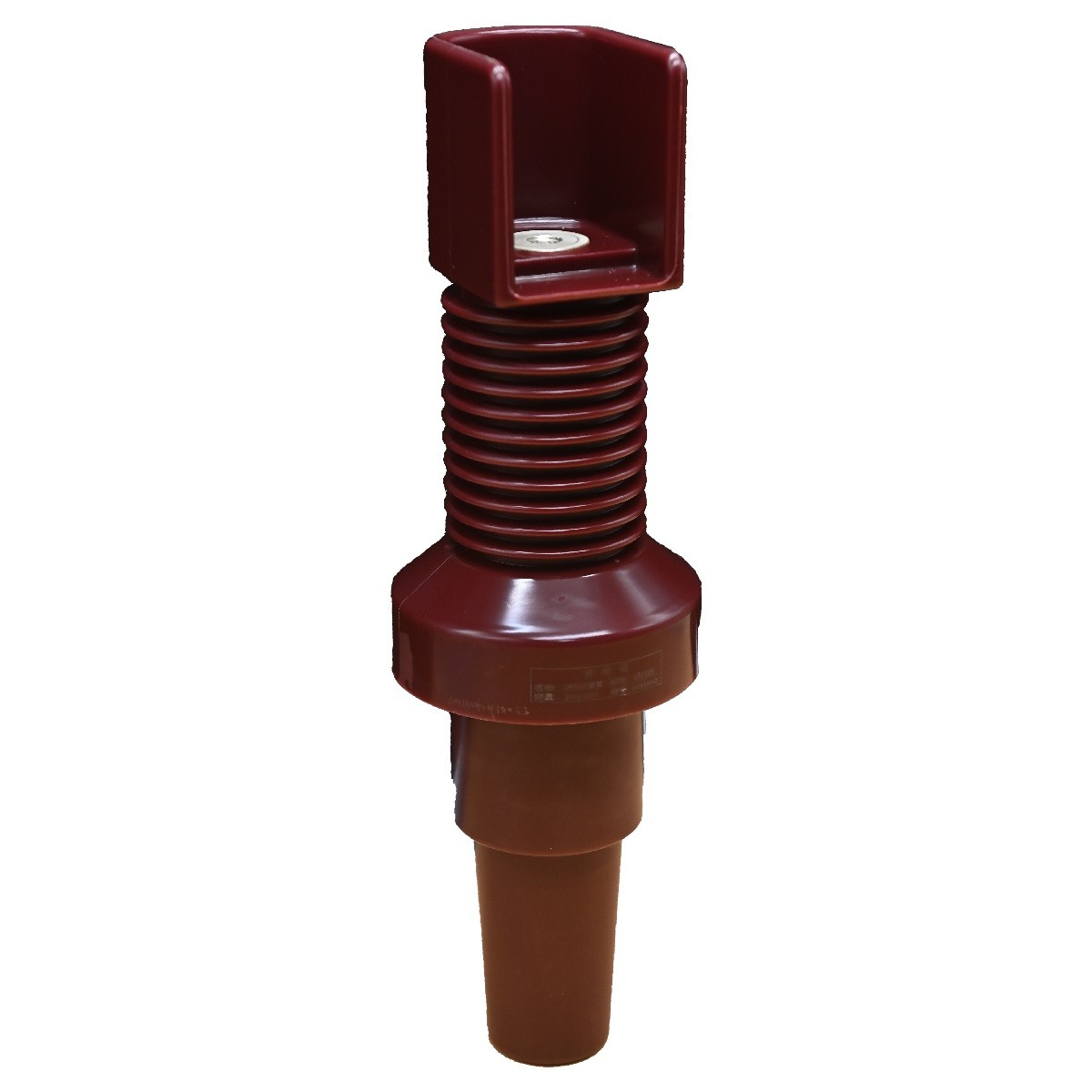

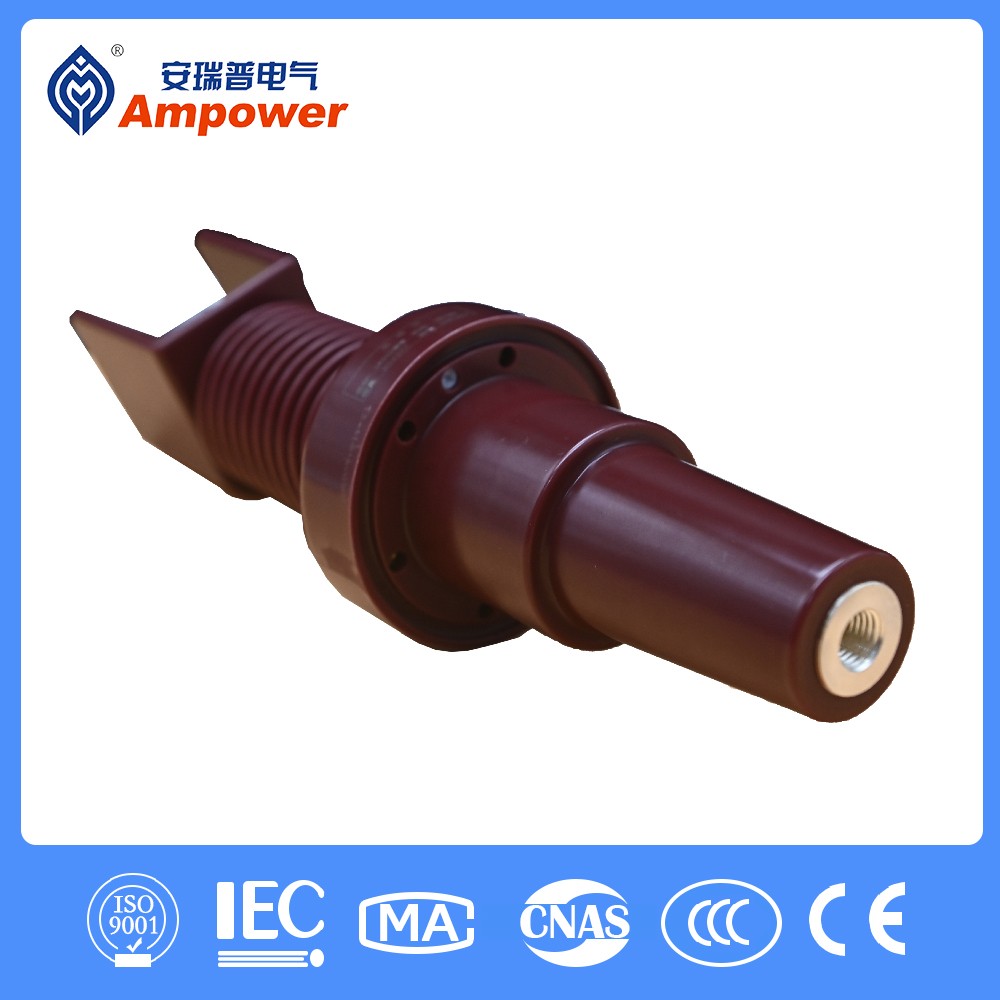

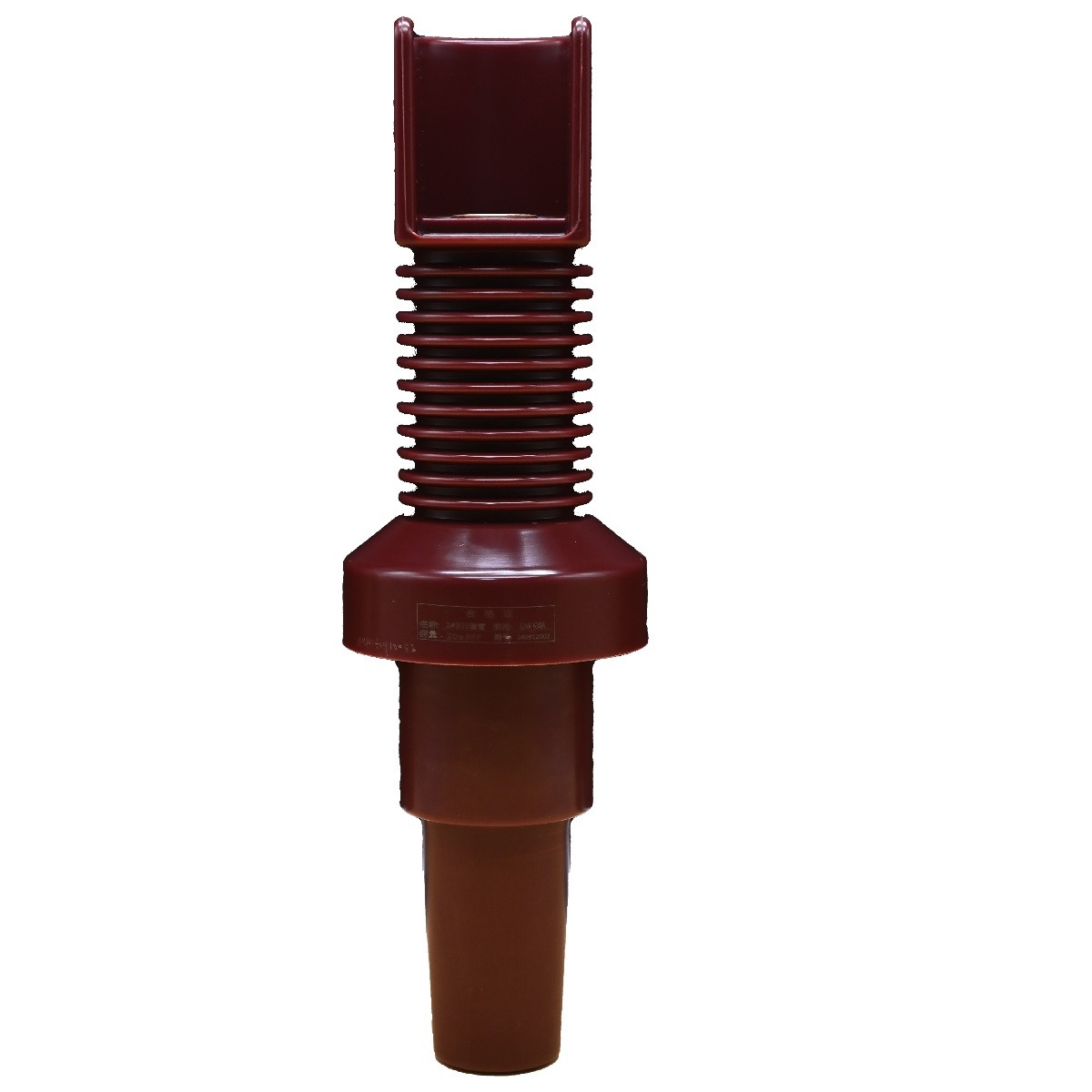

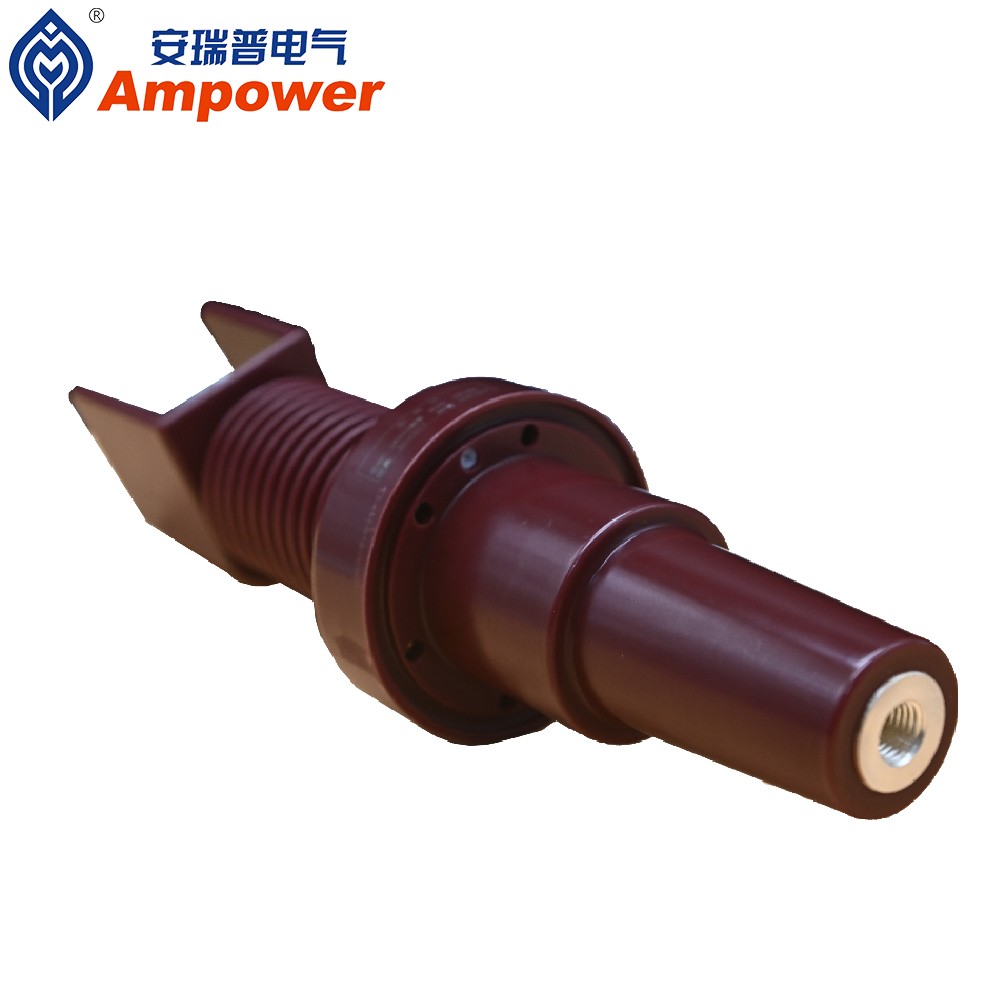

Om285/390/535 casing is used in air insulated environmental protection cabinet, it has enough air insulation distance, can support and fix cables and copper row, rated current can do 630A~ 1250A, voltage level can be used for 12kV, the material of high quality epoxy resin and copper, using no local release induction network, can shield grounding or connected to live display.
|
产品名称 |
1#OM285 Bushing |
2#OM285 Bushing |
3#OM285 Bushing |
4#OM285 Bushing |
1#OM390 Bushing |
2#OM390 Bushing |
3#OM390 Bushing |
4#OM390 Bushing |
1#OM535 Bushing |
2#OM535 Bushing |
3#OM535 Bushing |
4#OM535 Bushing |
|
Rated current |
630A |
630A |
630A |
1250A |
630A |
630A |
630A |
1250A |
630A |
630A |
630A |
1250A |
|
Rated voltage |
12kV |
|||||||||||
|
Partial Discharge |
14.4kV＜5PC |
|||||||||||
|
Power-Frequency withstand Voltage |
42kV/min |
|||||||||||
|
Capacitance value |
20±3PF |
|||||||||||
|
Scope of application |
Environmentally friendly cabinet/ Atmospheric pressure sealed cabinet |
|||||||||||
|

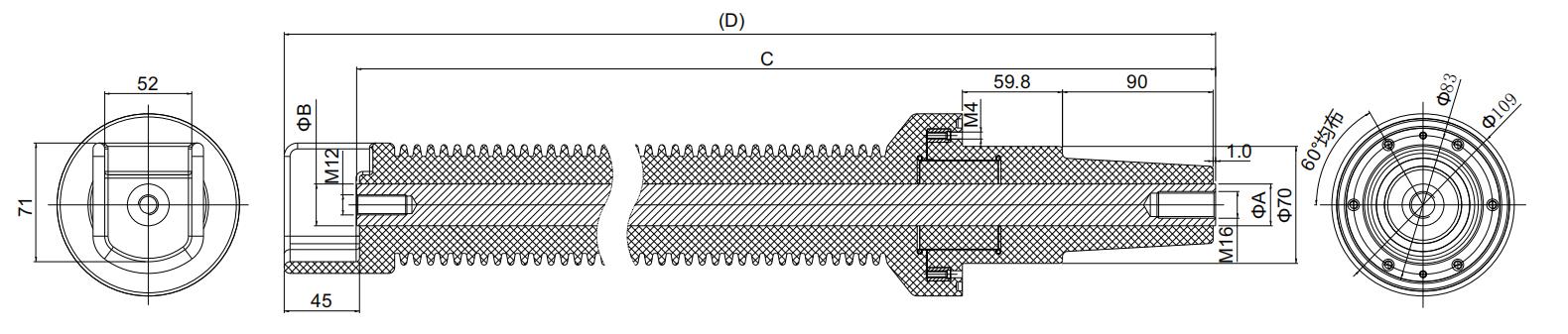

尺寸 |
||||||||||||
|
A |
Φ 25 |
Φ 32 |
Φ 32 |
Φ 32 |
Φ 25 |
Φ 32 |
Φ 32 |
Φ 32 |
Φ 25 |
Φ 32 |
Φ 32 |
Φ 32 |
|
B |
Φ 25 |
Φ 32 |
Φ 25 |
Φ 32 |
Φ 25 |
Φ 32 |
Φ 25 |
Φ 32 |
Φ 25 |
Φ 32 |
Φ 25 |
Φ 32 |
|
C |
285 |
285 |
285 |
285 |
390 |
390 |
390 |
390 |
535 |
535 |
535 |
535 |
|
D |
333 |
333 |
333 |
333 |
438 |
438 |
438 |
438 |
578 |
578 |
578 |
578 |
