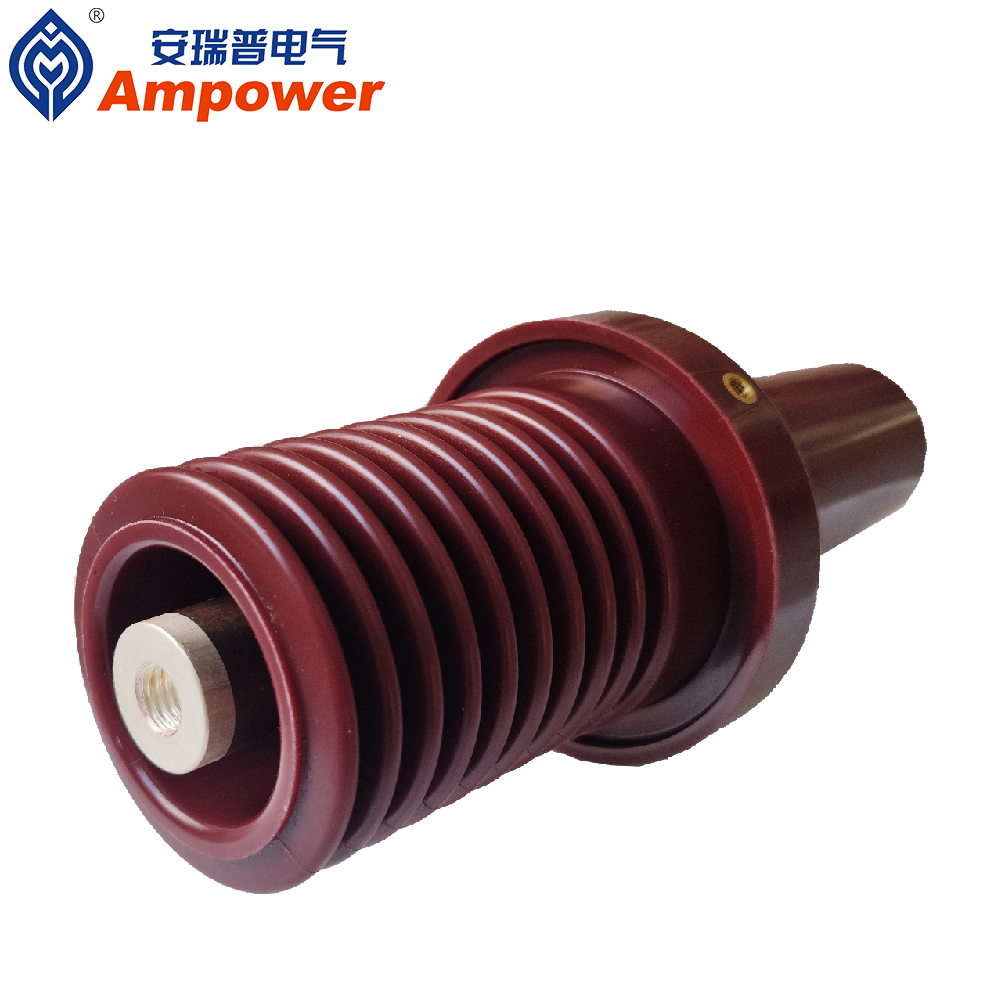

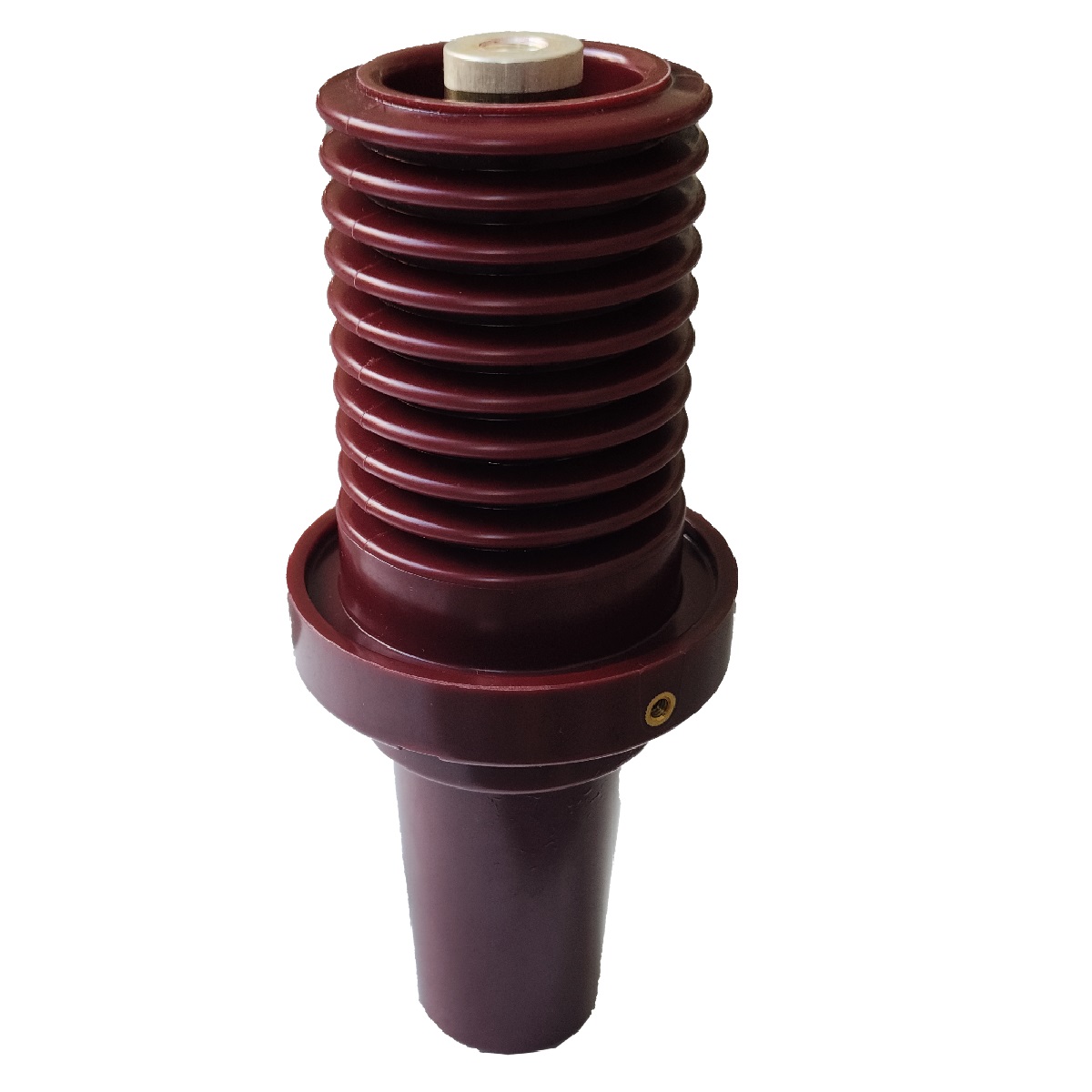

Zs235 casing is mainly used in the environmental protection cabinet, the rated current can achieve 630A 1250A, voltage grade 12kV the material selection of high quality epoxy resin and copper, using no ocal re ease induction network, can shield the ground or connected to the live display.
|
Product name |
1#ZS235 casing |
2#ZS235 casing |
|
Rated current |
630A |
1250A |
|
Rated voltage |
12kV |
12kV |
|
Partial discharge |
14.4-26.4KV≤10PC |
|
|
Power frequency withstand voltage |
42-68kV/min |
|
|
Capacitance value |
18±3PF |
18±3PF |
|
Scope of application |
Environmental protection cabinet |
|
|

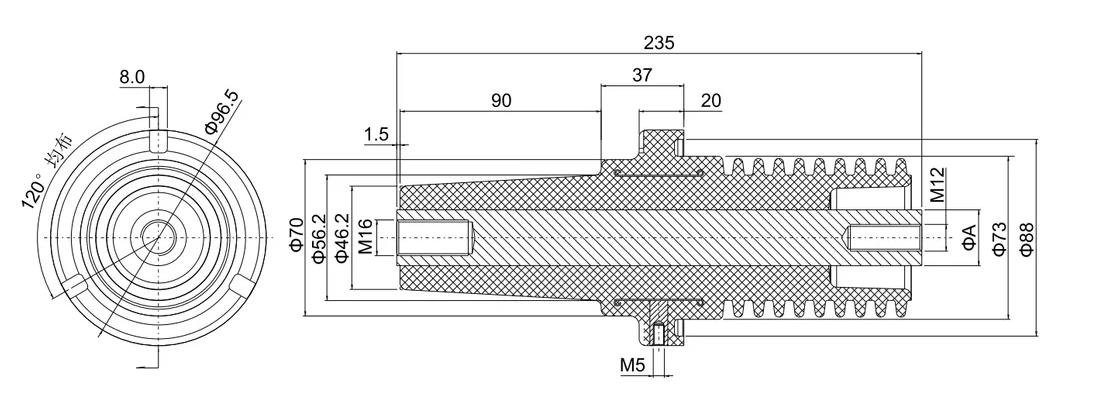

Size A |
SΦ25 |
SΦ32 |
