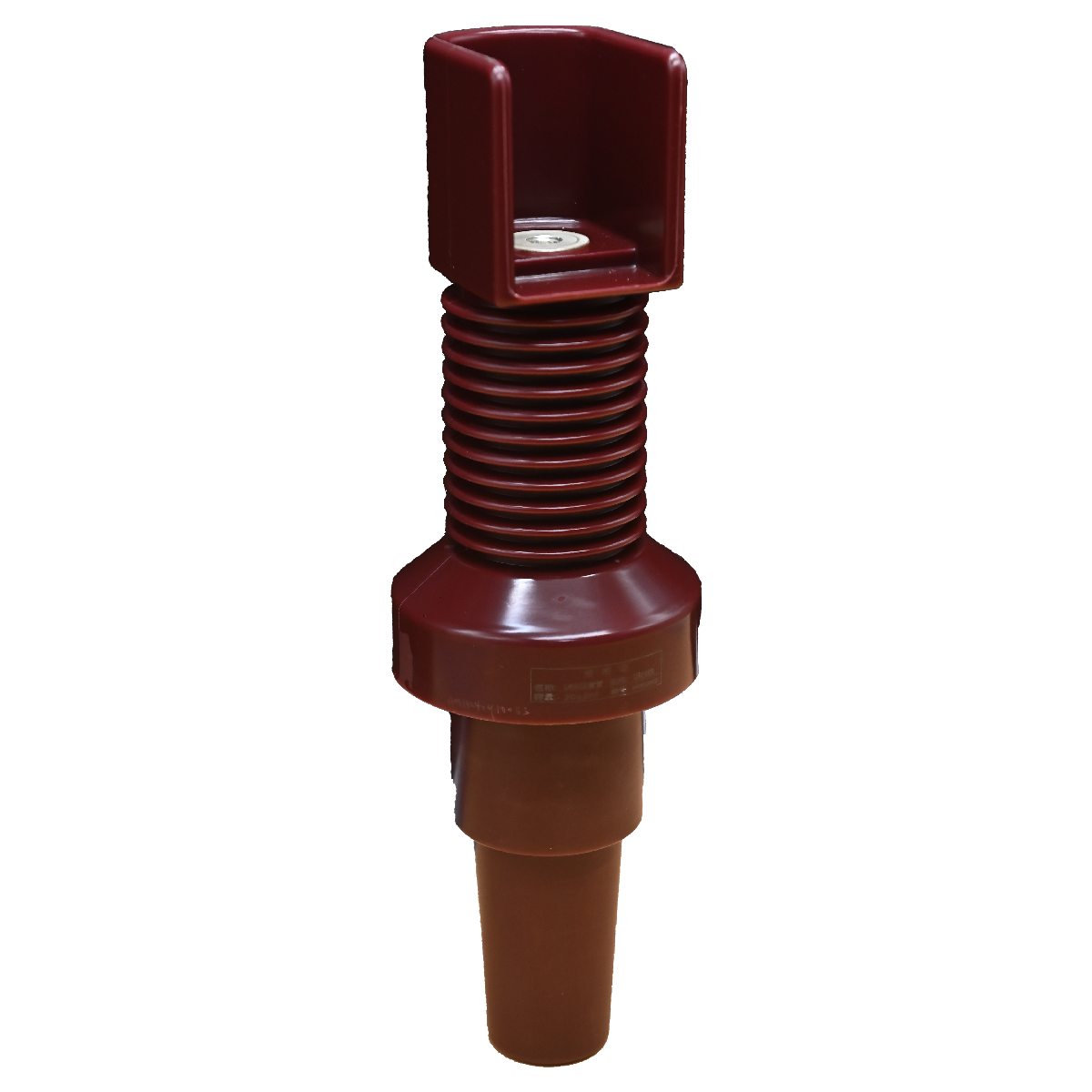

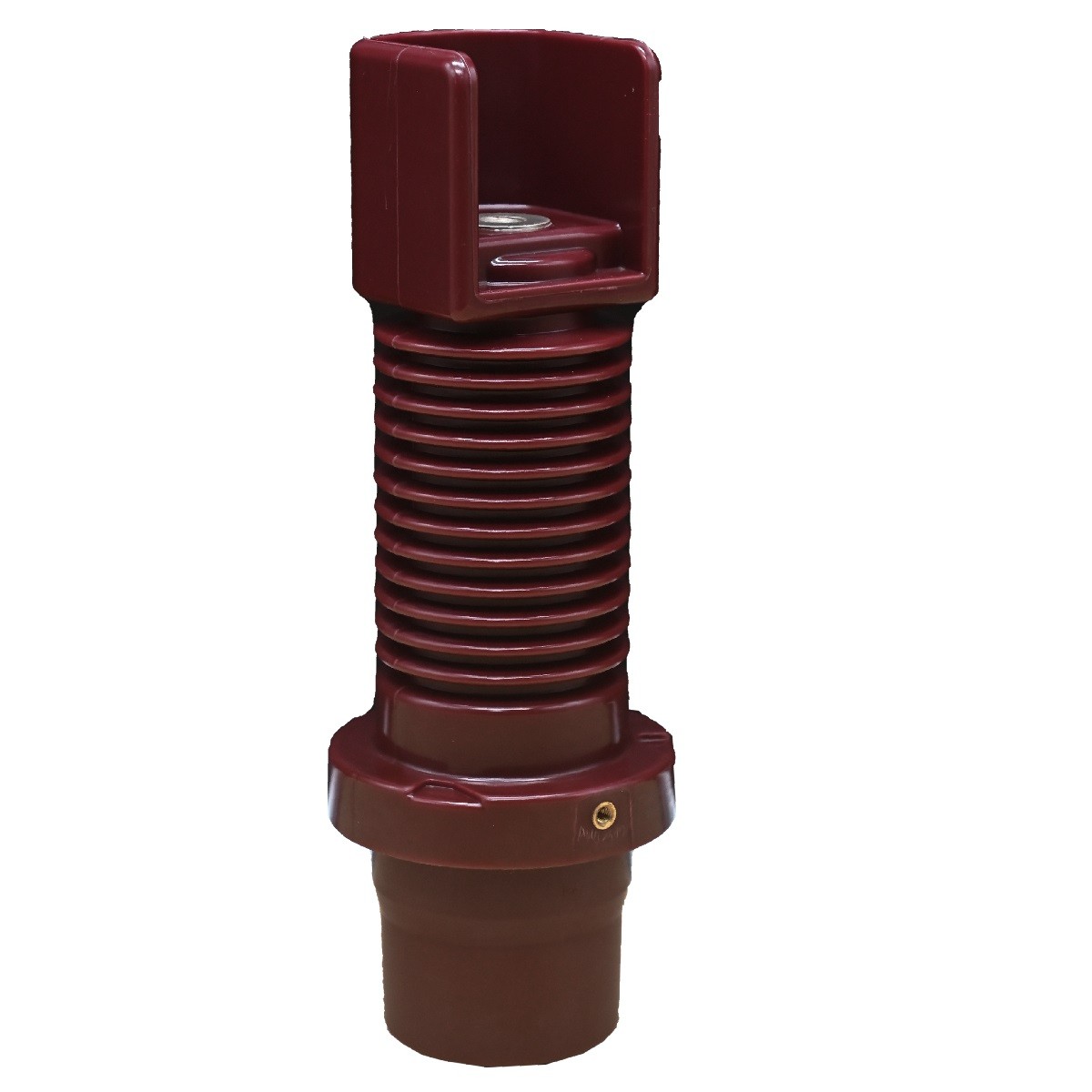

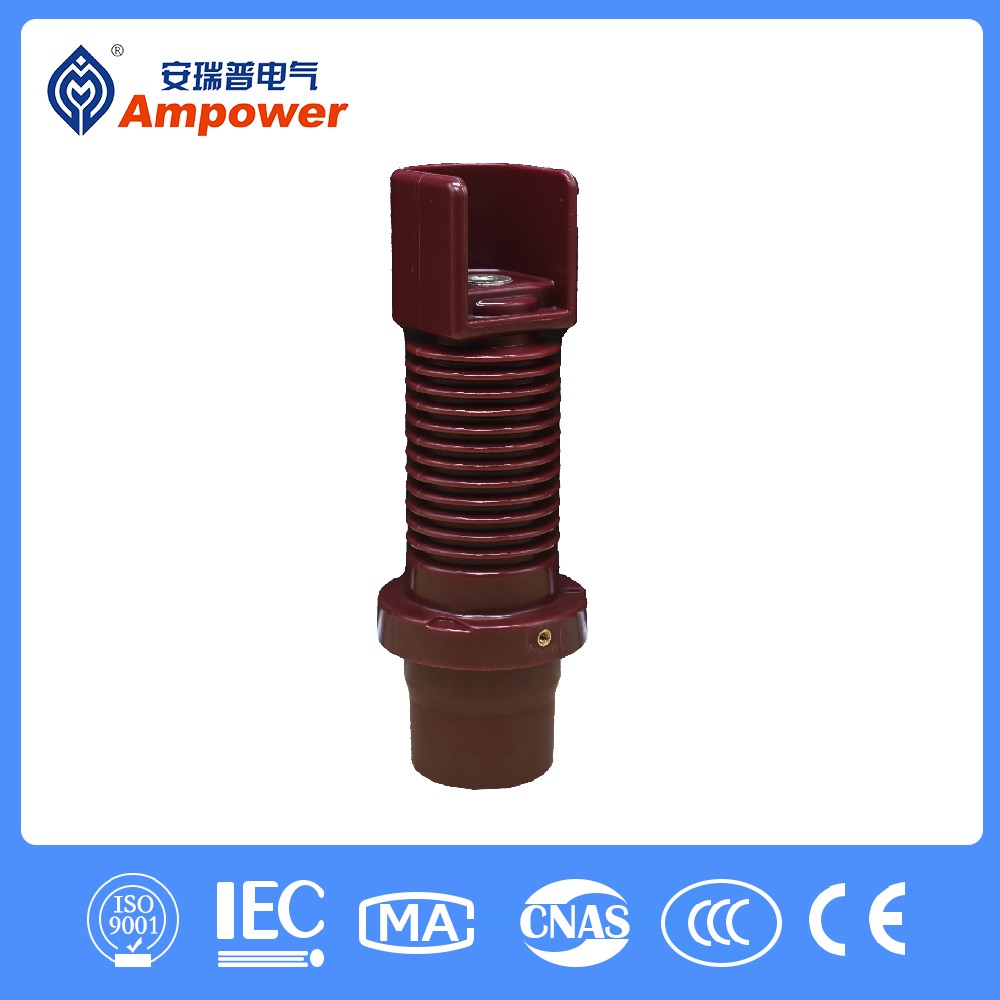

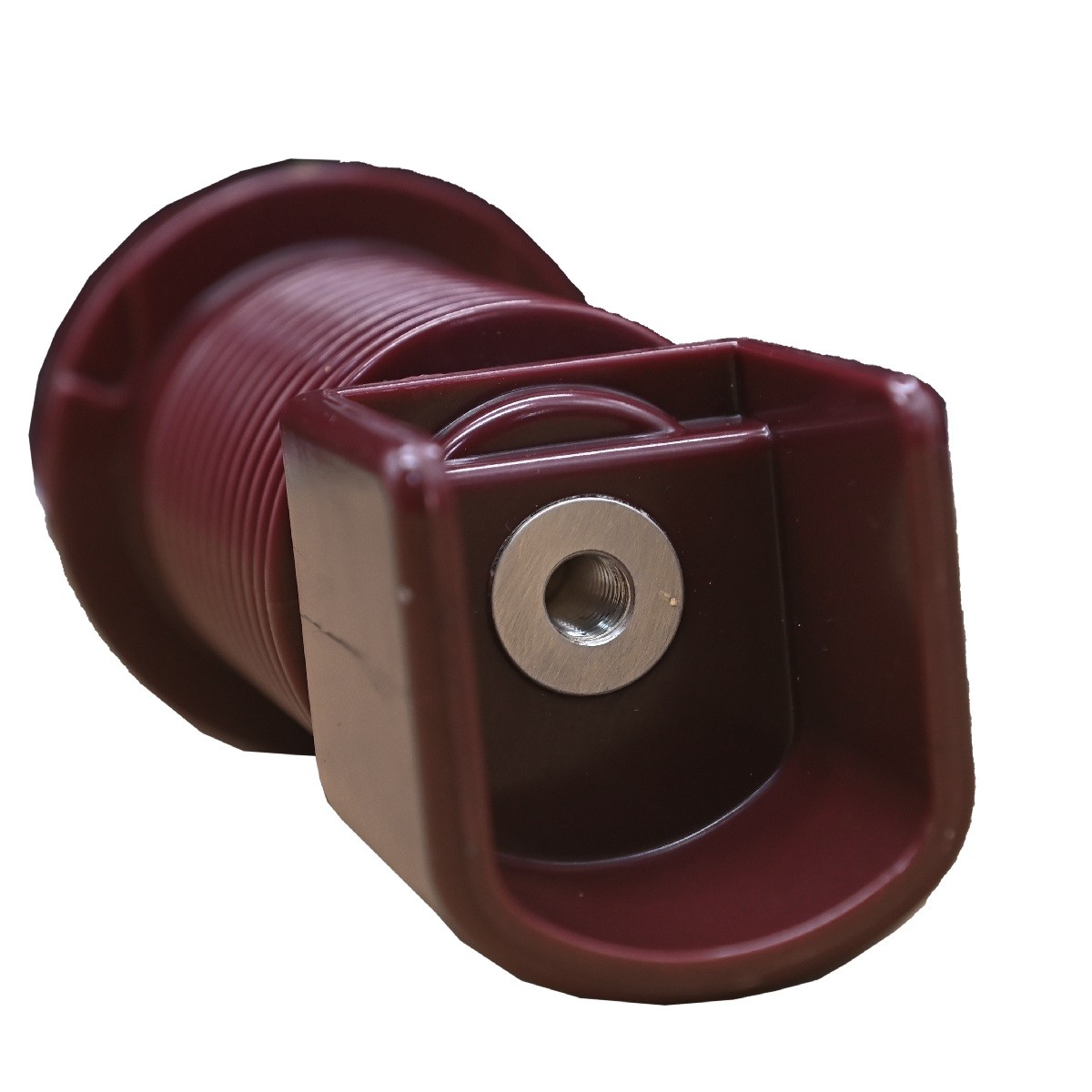

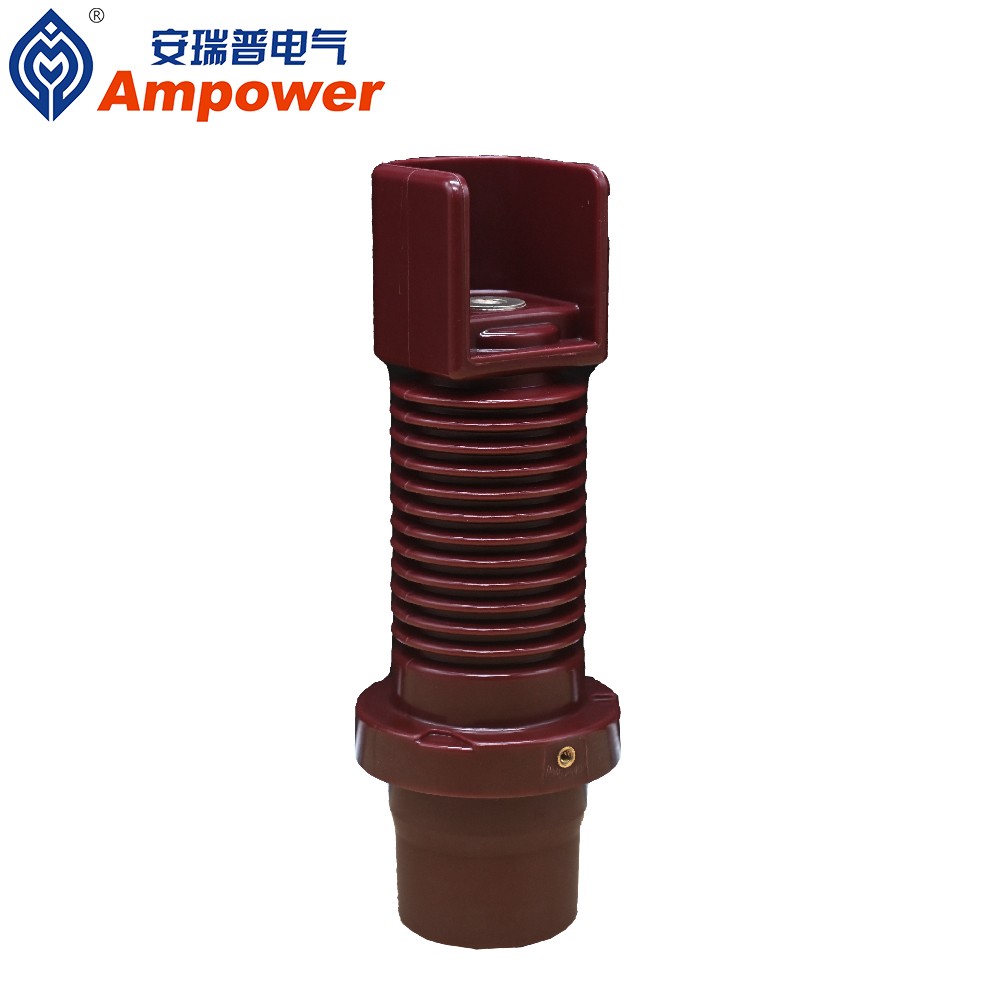

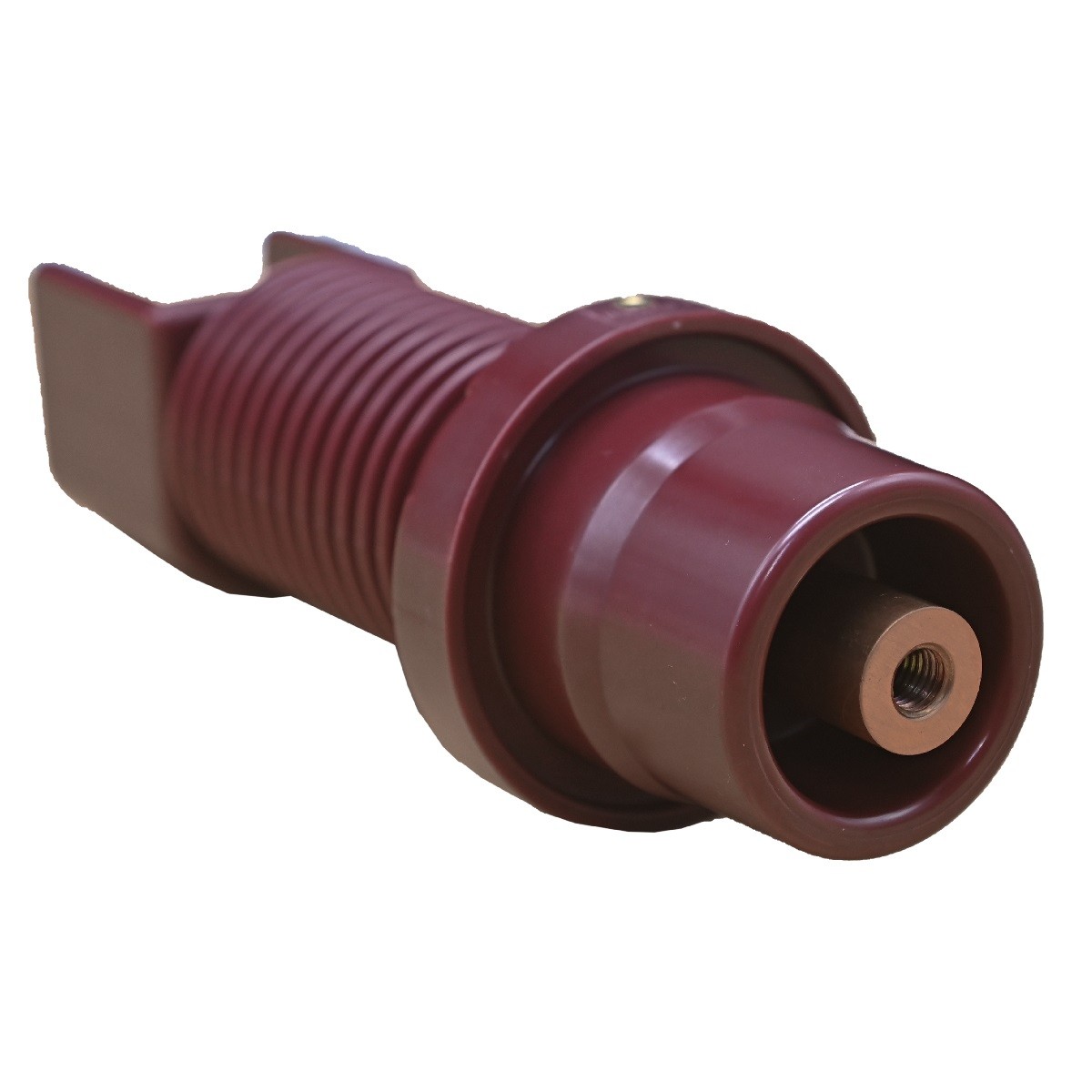

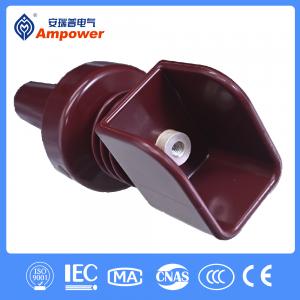

235 bushing is mainly used in PT cabinet or metering cabinet. It has enough air insulation distance to directly support the connection between the fixed switch cabinet and the wire bus. Its rated current can be 630A/1250A,and the voltage level can be used for 12kV and 24kV, The casing is made of high quality epoxy resin and red copper conductive rod, and adopts no local discharge induction network, which can shield grounding or connect live display.
| Product name | 1#235 casing | 2#235 casing |
| Rated current | 630A | 1250A |
| Rated voltage | 12kV | 12kV |
| Partial discharge | 14.4KV≤10PC | |
| Power frequency withstand voltage | 42kV/min | |
| Capacitance value | 18±3PF | 26±3PF |
| Scope of application | Inflation tank | |

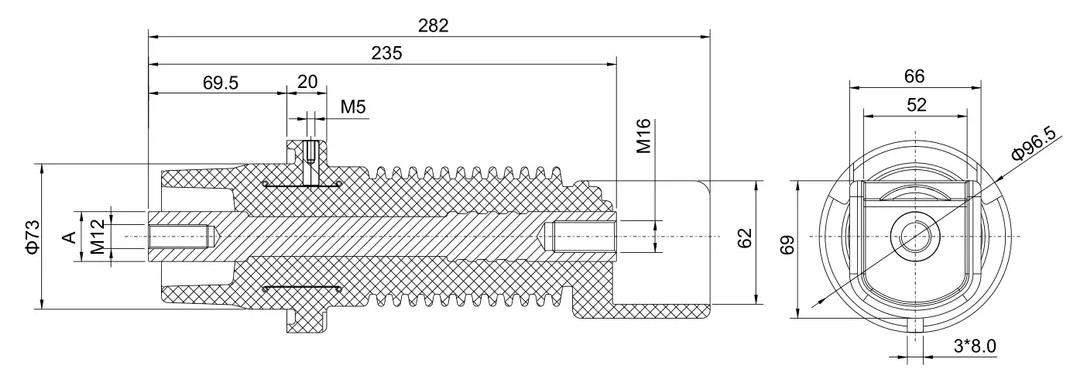

| Size A | SΦ25 | SΦ30 |
