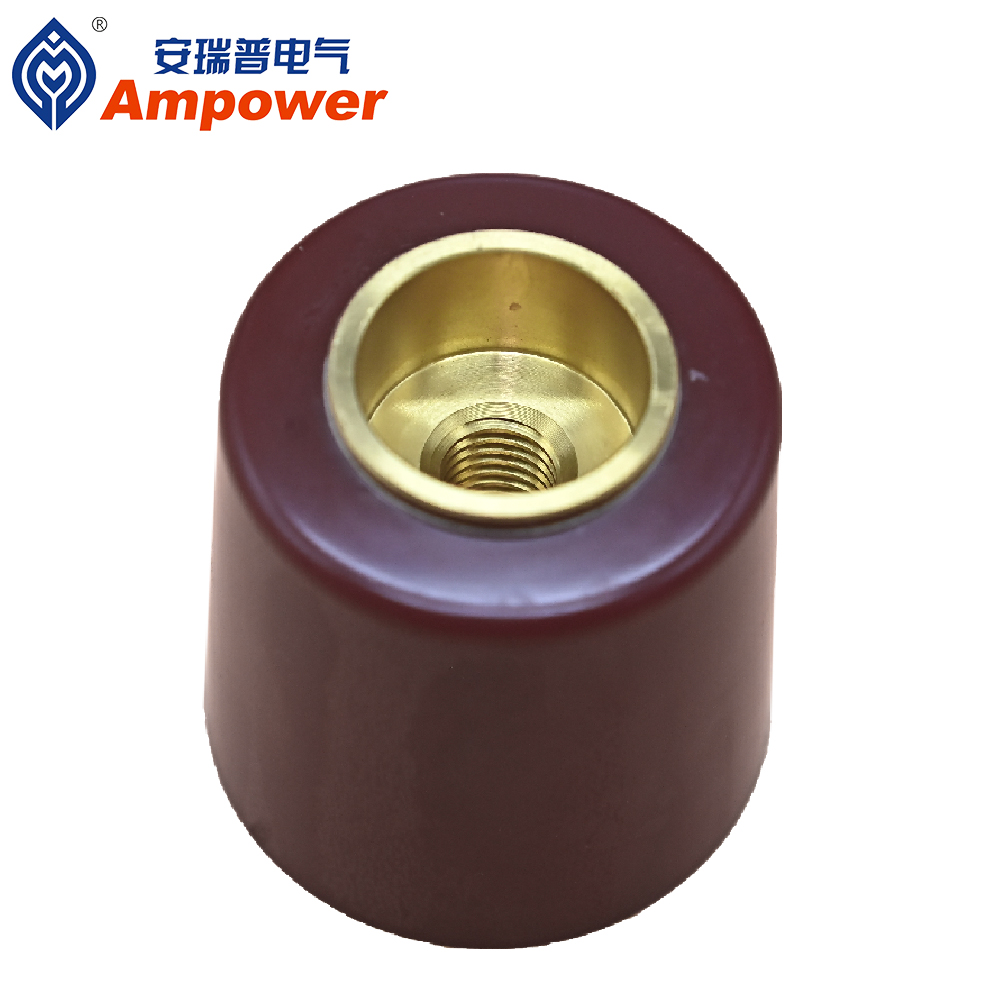

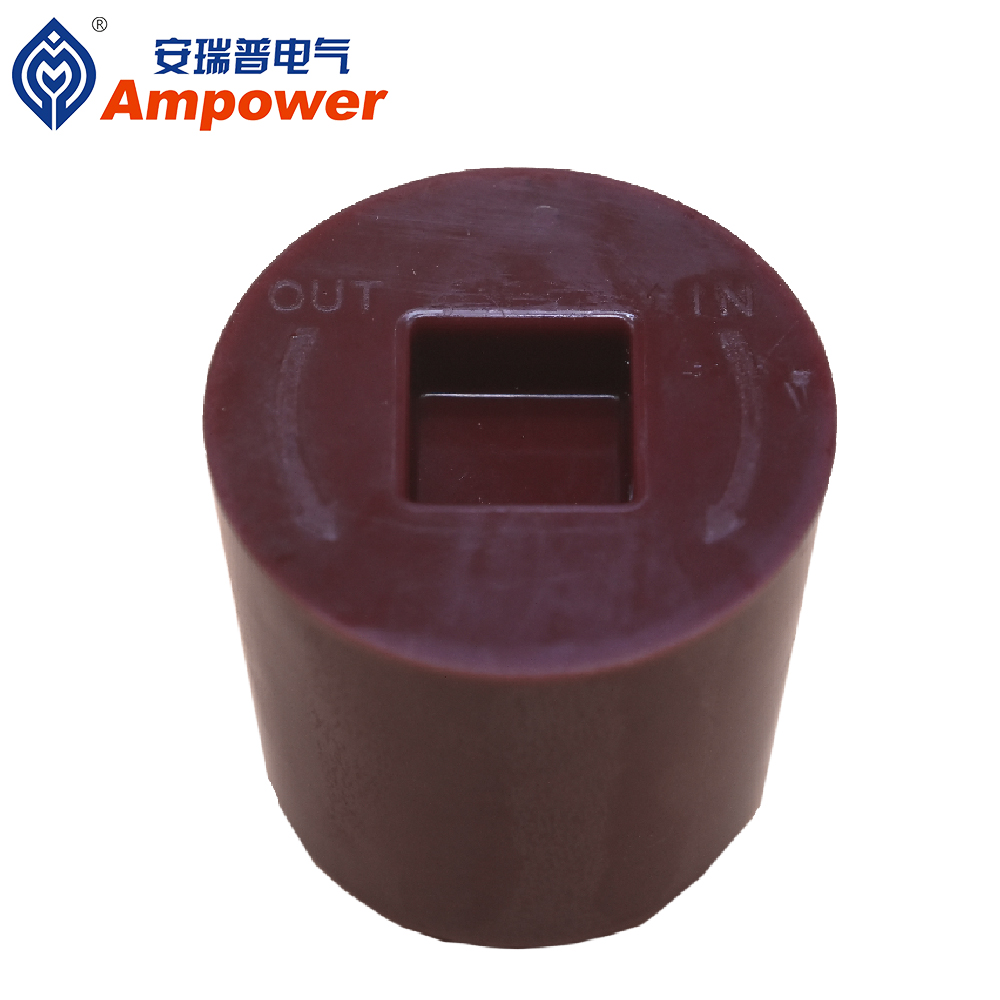

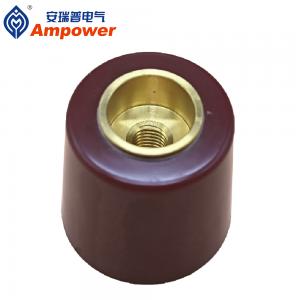

High-Performance 12kv 2# Connector for Reliable Power Supply

High-Performance 12kv 2# Connector for Reliable Power Supply

Short Description:

...


  • Rated current: 630A / 1250A
  • Rated voltage: 12/24kV
  • Partial Discharge: 14.4-26.4KV<5PC
  • Power-Frequency withstand Voltage: 42-68kV/min
  • Capacitance : 18±3PF / 26±3PF

Product Details

Product Tags





Product Description

Product Parameters
ltem Unit Techincal parameter
Rated voltage kV 12kV
Max.operating volatge kV 12kV
Rated frequency Hz 50Hz
Rated capacity KVA
1 min power frequency withstand volatge1min kV 45kV no breakdown, no flashover
Insulation Grade   Grade B
Standard   JB-T 10305-2001
Applicable altitude   <1000 m
Ambient temparature ºC -25ºC~40ºC
Partial discharge test PC 14.4kV ≤10PC













  • PREVIOUS：10-35kv/1250A Premium 3#Zs202 Casing for High Voltage Power Distribution

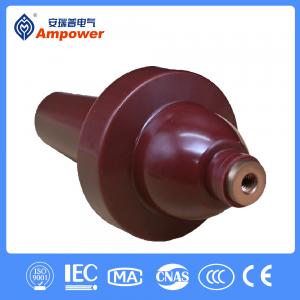

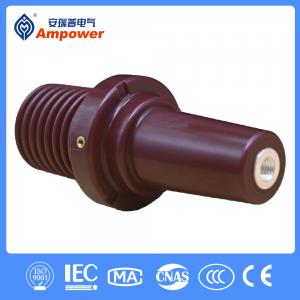

  • NEXT：202 Bushing
    • Leave Your Message
    Write your message here and send it to us

    Related PRODUCTS

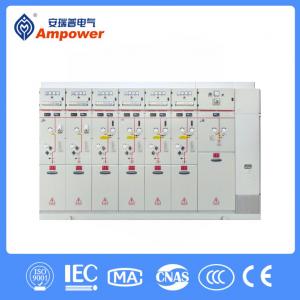

    • Full insulated inflatable cabinet ARV-12 630-20

    • Suitable for 630A-1250A Rated Voltage 235 Bushing of 10kv High Performance - 副本

    • 10-35kv/630A-1250A Premium Zs202 Casing for High Voltage Power Distribution

    • 202 Bushing

    • Reliable 220 Casing, Voltage 10-35kv, Rated Current 630A

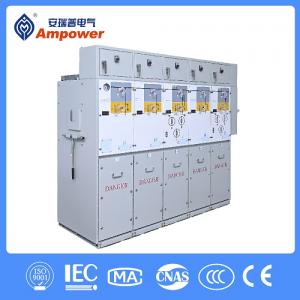

    • Full insulated inflatable cabinet ARSM16-12
