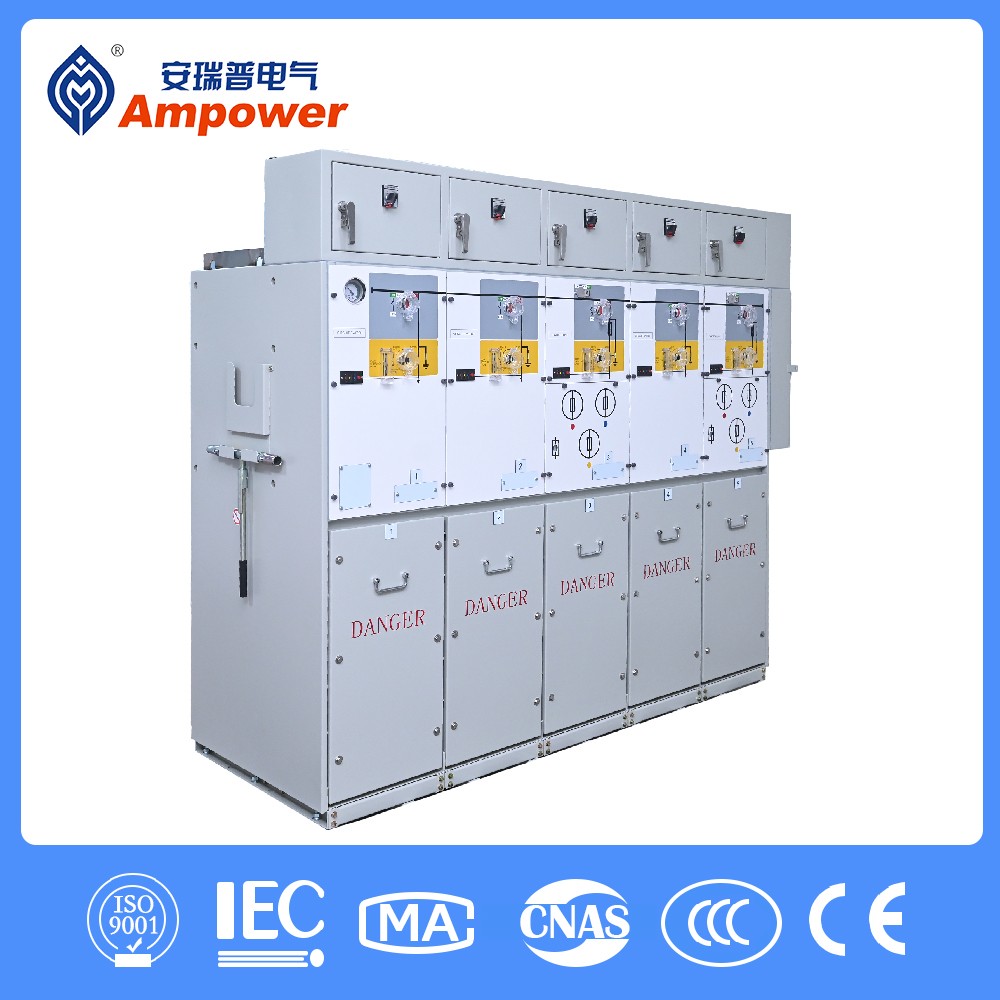

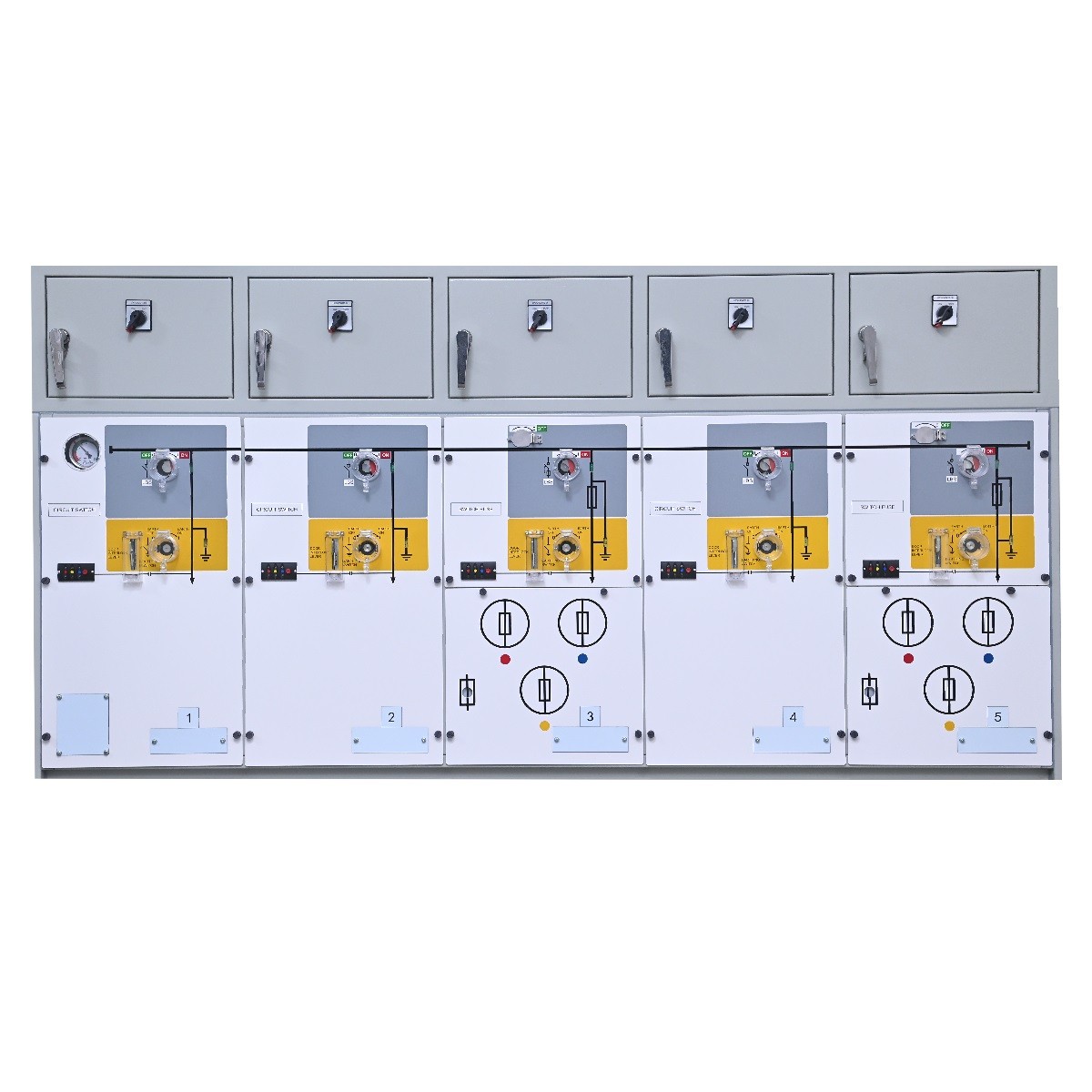

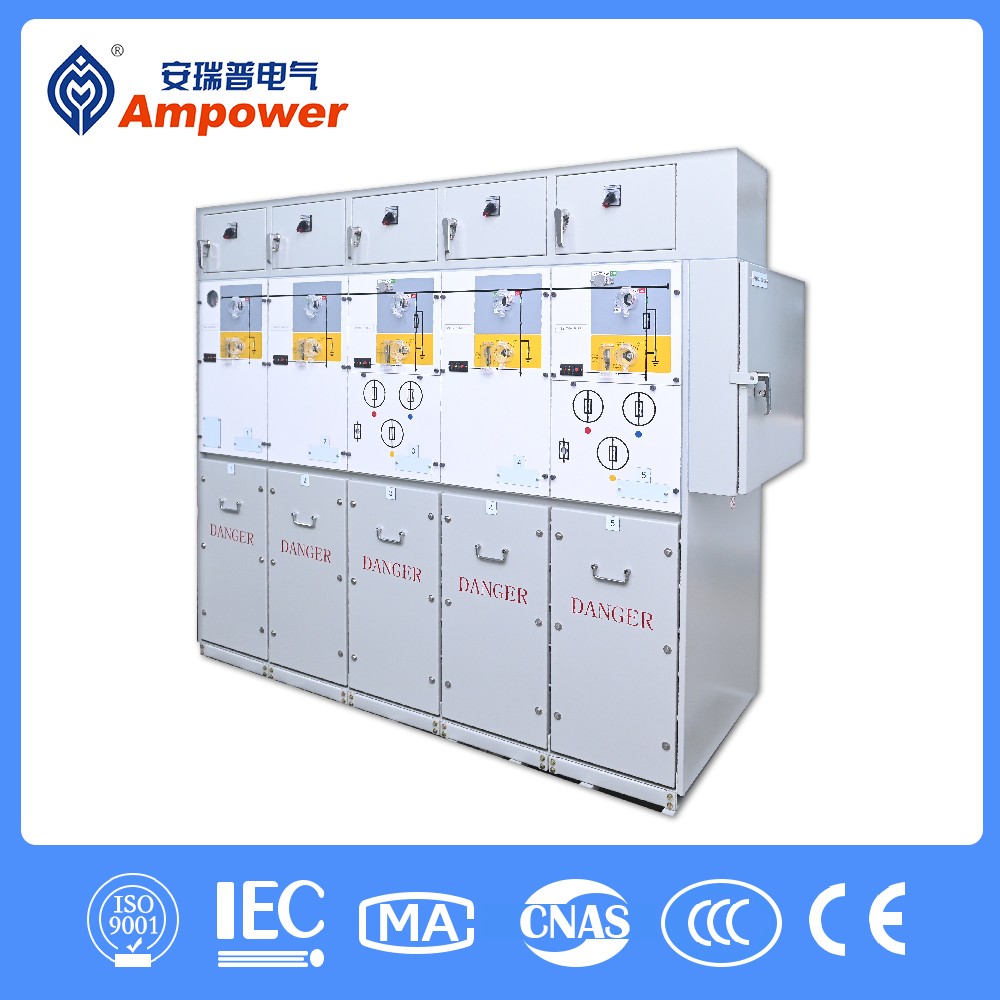

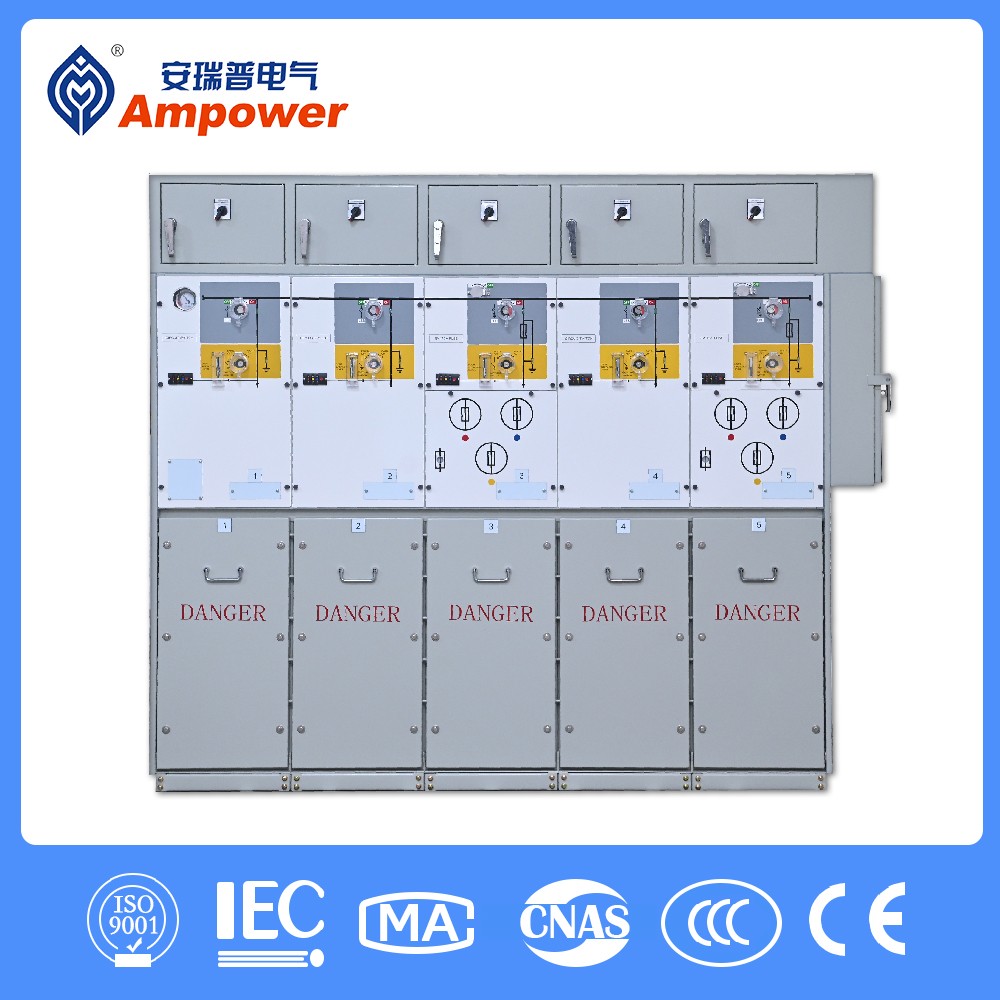

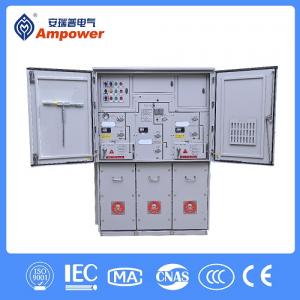

Full insulated inflatable cabinet ARSM16-12

Short Description:

...

Rated voltage: 12/24 KV
Rated frequency: 50 Hz
Power frequency withstand voltage (phase/fracture): 42/48 65/79 KV
Lightning impulse withstand voltage: 75/85 125/145 KV
Rated current: 630A

Product Details

Product Tags

1. Product Overview

ARSM16-12/24 Sulfur Hexafluoride Fully Insulated Compact Metal Enclosed Switchgear (hereinafter referred to as Sulfur Hexafluoride Inflatable Cabinet) is a ring net cabinet suitable for three-phase AC power system with rated voltage of 12/24 kV and rated frequency of 50/60 Hz. All components are subject to modular design, with flexible configuration and expansion scheme, compact product structure, comprehensive distribution automation scheme, control, segmentation, transformation and protection of lines.

It is suitable for areas with large power supply load and high density, such as residential areas, production, power supply, large public buildings, switching stations, industry and commerce, villages and towns, etc. It has the advantages, such as safe use, no wind and rain, convenient installation, locality, less maintenance, high reliability and high utilization rate.

This series of ring net cabinets are mainly designed according to GB3906, IEC298, IEC62271-1 and IEC62271-200.

2. Normal Use Conditions

No.	Name		Unit	Normal use value
1	Ambient air temperature	Maximum air temperature	℃	+55
		Minimum air temperature	℃	-40
		Maximum daily temperature difference	K	25
2	Altitude		m	≤2000
3	Solar radiation intensity		W/cm²	0.1
4	Pollution level			d
5	Covered ice thickness		mm	10
6	Wind speed/wind pressure		m/s/Pa	34/700
7	Humidity	Average daily relative humidity	%	≤95
7	Humidity	Average monthly relative humidity	%	≤90
8	Earthquake resistance (horizontal acceleration)		m/s²	2

3. Model and Definition

ARSM 16-□/□-□ AC metal enclosed switchgear (ring net cabinet)

4. Main Technical Parameters

No.	Description		Unit	Interval name
				D	C	F	V
1	Rated voltage		kV	12/24
2	Type of arc extinguishing chamber			/	SF6	SF6	Vacuum
3	Rated frequency		Hz	50/60
4	Rated current		A	630	630	125	630/1250
5	Temperature rise test current		A	1.1Ir
6	Rated power frequency 1min withstand voltage (phase to ground)		kV	42/65
7	Peak value of rated lightning impulse withstand voltage (1.2/50μs, phase to ground)		kV	75/145
8	Rated short-circuit breaking current		kA	/	/	31.5	20/25
9	Rated short circuit making current		kA	/	/	50/63		50/63
10	Rated short-term withstand current and duration		kA/s	20/25/4	20/25/4	/		20/25/4
11	Rated peak withstand current		kA	50/63	50/63	/		50/63
12	Arc duration		s	≥1
13	Interruption times under rated active load		Times	/	100	100		100
14	Short-time power frequency withstand voltage of auxiliary and control loops		kV	2
15	Power supply	Control loop	V	DC24/DC48/DC110/AC220/DC220
		Auxiliary circuit	V	DC24/DC48/DC110/AC220/DC220
16	Service life		Year	≥30
17	Protection class	Cabinet shell		IP4X/IP3X
		Compartment room		IP2X
18	Rated gas pressure (20℃ gauge pressure)		bar	1.4
19	Annual gas leakage rate		V/V	0.1%
20	Partial discharge quantity		pC	Whole cabinet (1.1Ur) ≤ 20pC Single insulator (1.1Ur) ≤ 5pC
